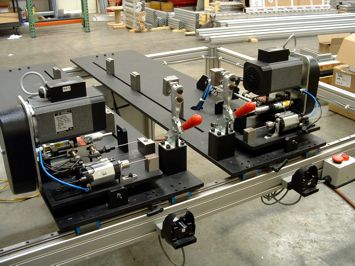

Dual station drill and pin insertion machine



This drill station is used in the manufacturing of ventilation system filter grills. It is adjustable to a wide range of grill sizes. The station drills and installs hinge pins on each side of the frame.

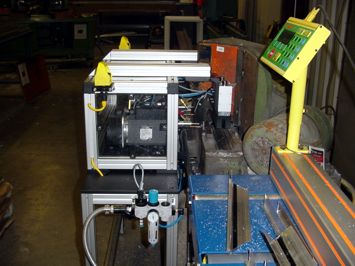

Dual drill unit added to a miter saw


This drill station was added to a miter saw to drill a weep hole in the extrusion during the cut cycle.

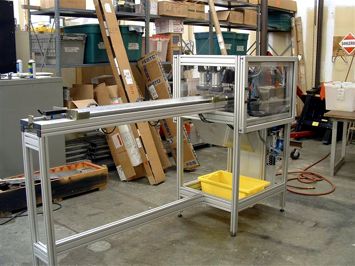

Quad window frame drill unit


This drill station drills four access holes simultaneously into the rear of a window frame.

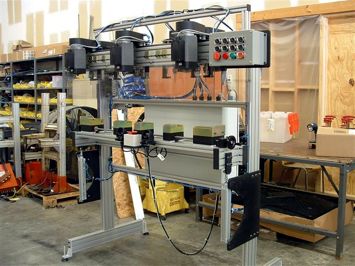

Multi-position drilling station


This drill station drills multiple holes in multiple positions. Each drill head has quick-change locating pins for quick and easy repositioning of the drill units.

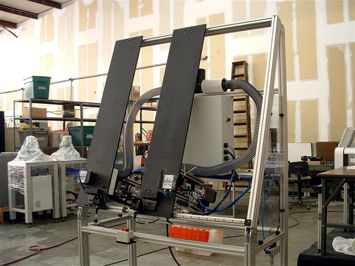

Dual-position milling station


This milling station removes a boss that is required to be cut away for assembly.

View Video
